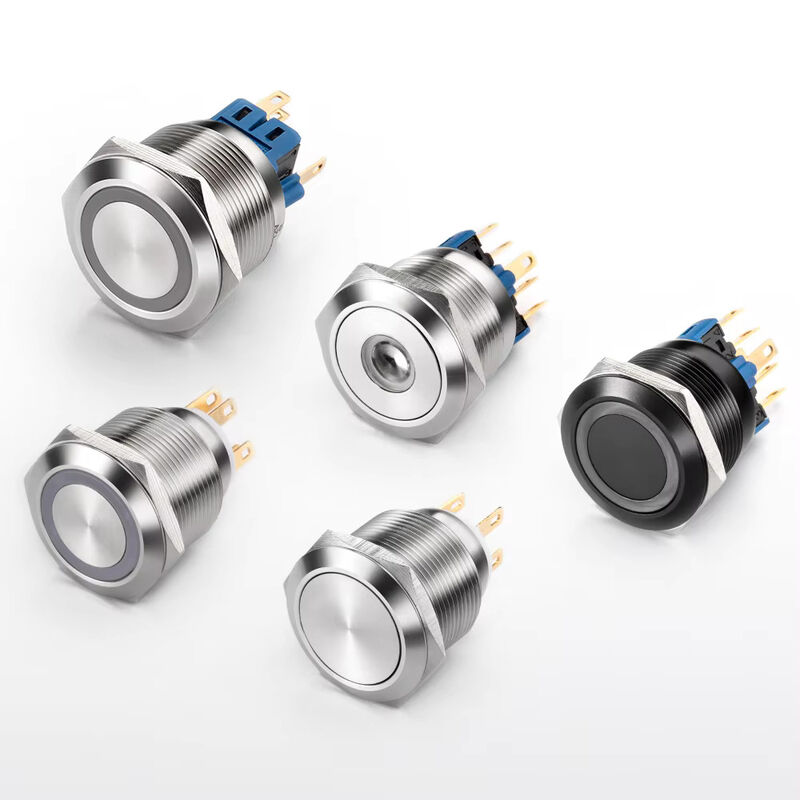

12mm 16mm 19mm 22mm 25mm 28mm 30mm 40mm Push Button Switch Latching Momentary Illuminated Waterproof Button Switch

12mm 16mm 19mm 22mm 25mm 28mm 30mm 40mm Push Button Switch Latching Momentary Illuminated Waterproof Button Switch

Place of Origin:

CHINA

Brand Name:

wuhan lanxu technology

Certification:

CE RHOS UL

Model Number:

LX015

Chat Now
Request A Quote
12mm 16mm 19mm 22mm 25mm 28mm 30mm 40mm Push Button Switch Latching Momentary Illuminated Waterproof Button Switch 12mm 16mm 19mm 22mm 25mm 28mm 30mm 40mm Push Button Switch Latching Momentary Illuminated Waterproof Button Switch 12mm 16mm 19mm 22mm 25mm 28mm 30mm 40mm Push Button Switch Latching Momentary Illuminated Waterproof Button Switch 12mm 16mm 19mm 22mm 25mm 28mm 30mm 40mm Push Button Switch Latching Momentary Illuminated Waterproof Button Switch 12mm 16mm 19mm 22mm 25mm 28mm 30mm 40mm Push Button Switch Latching Momentary Illuminated Waterproof Button Switch 12mm 16mm 19mm 22mm 25mm 28mm 30mm 40mm Push Button Switch Latching Momentary Illuminated Waterproof Button Switch
Product Details
Product Name:
ON OFF Switch
Operation Type:
Self-locking
Function:
Control
LED Color:
Red.Yellow.Green.White.Blue.Orange
Terminal Type:
Screw Terminal
Protection:
IP65/ IK09
Max. Current:
5A
Max. Voltage:
250VAC
Switch Combination:
1NO1NC
Payment & Shipping Terms
Minimum Order Quantity
100
Price
USD 0.4~1.7/piece
Packaging Details
PE bags&paper box
Delivery Time
7~10 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100000 pieces a week
RELATED PRODUCTS
CONTACT US
86--15217135064
leo@cable-producer.com
Chat Now
Product Description

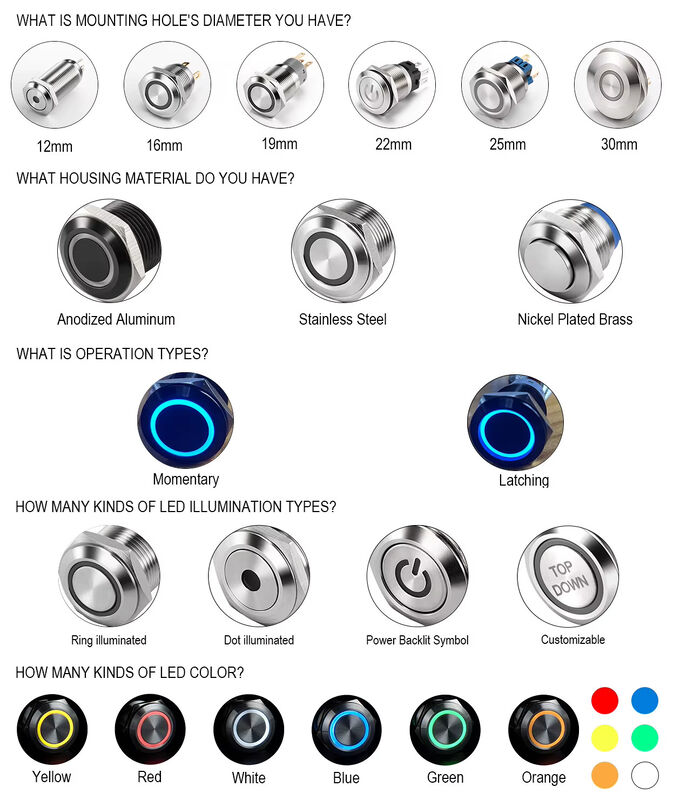

Illuminated Options
Non-Illuminated/ Ring Illuminated/ Dot Illuminated
Terminal
Solder lug (2.8X0.5)/ Screw
Contact Resistance
≤50mΩ
Insulation Resistance
≥1000mΩ
Dielectric Strengh
2000VAC
Operation Temp.
-20°C ~ +55°C
Mechanical Life
2,000,000cycles
Electrical Life
100,000cycles
Contact Material
Silver Alloy
Torque
5 ~ 14Nm

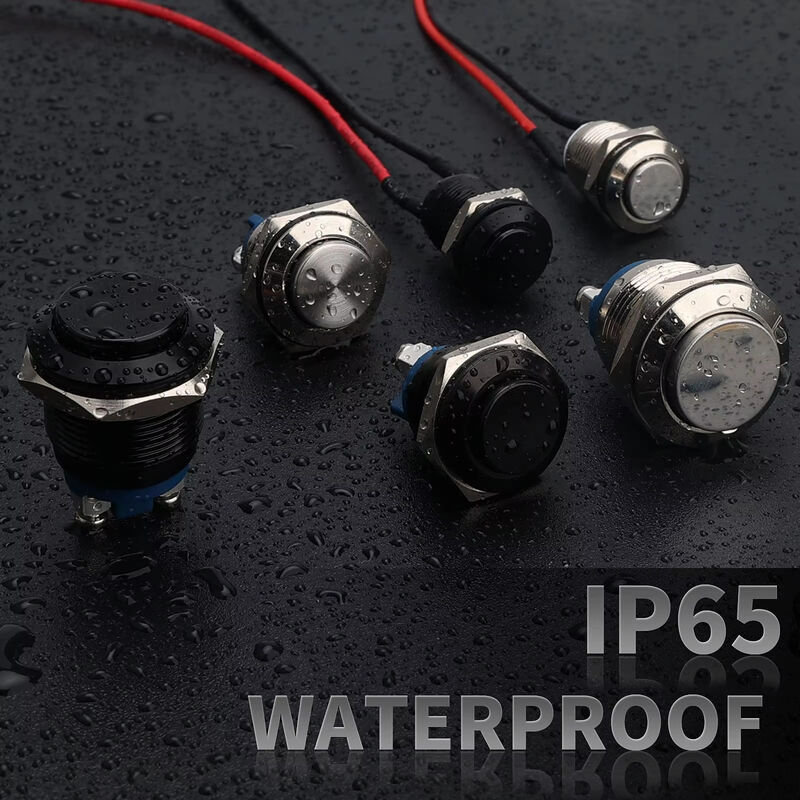

Protection
IP65/ IK09
Button
Stainless steel / Nickel plated brass / Anodized aluminum
Body
Stainless steel / Nickel plated brass / Anodized aluminum
Base
PBT

12mm 16mm 19mm 22mm 25mm 28mm 30mm 40mm Push Button Switch Latching Momentary Illuminated Waterproof Button Switch 012mm 16mm 19mm 22mm 25mm 28mm 30mm 40mm Push Button Switch Latching Momentary Illuminated Waterproof Button Switch 112mm 16mm 19mm 22mm 25mm 28mm 30mm 40mm Push Button Switch Latching Momentary Illuminated Waterproof Button Switch 212mm 16mm 19mm 22mm 25mm 28mm 30mm 40mm Push Button Switch Latching Momentary Illuminated Waterproof Button Switch 3
